Özellikler

  • 19 ’’ 2 kanallı alıcı, 19 inç 1RU
  • Büyük 244 MHz anahtarlama bant genişliği
  • Masterpiece Digital 9000'den tescilli ses kodek (SEDAC) ile efsanevi uzun menzilli modu (LR)
  • Verimlilik ile optimize edilmiş ses kodek (SEPAC) ile bağlantı yoğunluk modu (LD modu) MHz bant genişliği başına 5 kanal sağlar
  • Maksimum kanal yoğunluğu ve en basit kurulum için eşit uzaklıkta frekans ızgarası
  • Anten girişinde parazit sinyallerinin optimal baskılanması için 32 üstün kaliteli RF ön seçim filtreleri
  • Hata düzeltmesi ve ses hatası maskeleme
  • AES-256 Şifreleme
  • Otomatik frekans kurulumu
  • Dijital ve Transformatör Dengeli Analog Çıkışlar XLR, 6.3 mm Jack, AES-3, EM 6000 Dante Brooklyn II kart ve amfenol RJ-45
  • En fazla 8 sistemin basamaklı olması için entegre anten ayırıcı
  • Kanal başına bir yüksek kaliteli OLED ekran
  • Bağlantı Kalitesi Göstergesi (LQI)
  • Kablosuz Sistem Yöneticisi (WSM) Uyumlu
  • Standart Sennheiser UHF antenleriyle uyumlu
  • Uzun aralık modunda dijital 9000 vericilerle uyumlu

En İyi Özellikler

Gecikme (Ms) Analog Audio Out: 3 Ms (Lr) / 3.2 Ms (Ld), Digital Audio Out: 3 Ms (Lr) / 3.2 Ms (Ld) (Aes/Ebu)
Audio input 2x BNC (50 Ω)
Audio output Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
Charging time (h) BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
Power consumption (Amp) 85 W
Sensitivity -100 dBm typ.
Dimensions 44 x 483 x 373 mm
Weight (g) Approx. 5.2 kg
TÜRLER
Uygulama Türleri Yayıncılık Canlı Prodüksiyon Ve Turne
Ürün
Gecikme (Ms) Analog Audio Out: 3 Ms (Lr) / 3.2 Ms (Ld), Digital Audio Out: 3 Ms (Lr) / 3.2 Ms (Ld) (Aes/Ebu)
Receiver principle Double superheterodyne
Total harmonic distortion (THD) < 0.03 % (@ 1 kHz)
Frekans Özellikleri
Frequency response 30 Hz - 20 kHz (1.5 dB)
Audio frequency response LR Mode: 30 Hz - 20 kHz (1.5 dB), LR Mode: 30 Hz - 14 kHz (1.5 dB)
Akustik Özellikler
Dynamic range (>) 111 dB (A) type
Audio output level XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Bağlantı
Bağlantı Kablosuz
Giriş/Çıkışlar
Audio input 2x BNC (50 Ω)
Audio output Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
Ortam Koşulları
Operating relative humidity (≤ %) Max. 85% at 40°C (non-condensing)
Operating temperature (C) -10 °C to +50 °C (14 °F to 122 °F)
Batarya ve Güç
Battery included N
Charging time (h) BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
Power consumption (Amp) 85 W
Charging voltage (V) BA 60/BA 61: 4.2 V BA 62: 4.35 V BA 70: 4.35 V
Elektriksel Özellikler
Sensitivity -100 dBm typ.
Teknoloji
Network protocol IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Encryption AES 256
Codecs SeDAC (Sennheiser Digital Audio Codec), SePAC (Sennheiser Performance Audio Codec)
Transmission method Digital modulation, Long Range Mode (LR): Min. frequency spacing for equidistant grid: 400 kHz, Link Density Mode (LD):Min. frequency spacing for equidistant grid: 200 kHz
Boyutlar
Dimensions 44 x 483 x 373 mm
Height (mm) 175
Length (mm) 550
Weight (g) Approx. 5.2 kg
Width (mm) 435
Product height 44
Product length 373
Product weight (g) 5200
Product width 483

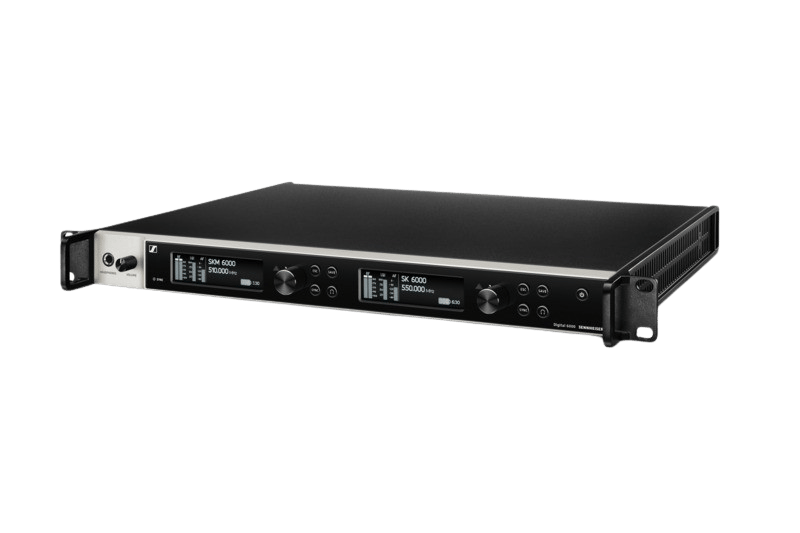

  • 1 EM 6000
  • 1 şebeke kablosu (AB, İngiltere veya ABD fişi ile)
  • Hızlı rehber
  • Güvenlik rehberi
  • 2 anten
  • Daisy zincirleme için 2 BNC anten kablosu (50 Ω)
  • 2 lastik ayak
